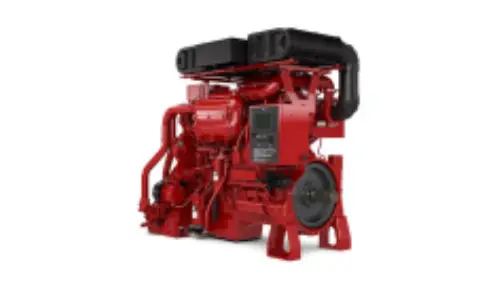

Caterpillar 3406C Fire Pump Engine

The Caterpillar 3406C UL-listed fire pump engine is an I-6, 4-Stroke-Cycle-Diesel engine with a 137.0 mm (5.4 in) bore, 165.0 mm (6.5 in) stroke and 14.6 L (893.0 in³) displacement.

The Caterpillar 3406C UL-listed fire pump engine is rated at 2300 RPM and rated at 482 BHP (359 bkW).

Caterpillar 3406C UL-listed fire pump engine complies with Non-Certified. Available for global non -regulated areas. FM Approved, UL Listed, air intake is turbocharged After cooling.

As part of EMAC, Caterpillar Pump also offers high performance propulsion and handling solutions Engine, engine provides electronic control and mechanical, fuel common rail system for customers to choose, we provide full life cycle service for all customers, from design to ship power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from Troubleshooting to Overhaul Technical Support.

Advantages of 3406C UL-listed Fire Pump Engine

Package Size : Ultra-compact package size ensures ease of installation as well as exceptional power density.
Emissions : U.S. EPA Tier 3, Tier 2 or Non-certified emission standards for stationary emergency pump engines. FM Approved, UL Listed.
High Performance : Substantial torque rise delivers impressive performance throughout a wide speed range while maintaining lowoperating costs.
Fuel Efficiency : Fuel consumption optimized to match operating cycles of a wide range of equipment and applications while maintaining low operating costs.
Reliable, Quiet and Durable Power : World-class manufacturing capability and processes coupled with proven core engine designs assure reliability, quiet operation, and many hours of productive life.

Technical Specifications

Basic Introduction of Caterpillar 3406C UL-listed Fire Pump Engine

Engine Model:	3406C
Engine Type:	Inline 6, 4-Stroke-Cycle Diesel
Displacement:	14.6 L
Rated Power / Speed:	359 kW @ 2300 RPM
Aspiration Method:	Turbocharged Aftercooled (TA)
Emission Standard:	Non-Certified
*Bore Stroke:**	137 mm (5.4 in) * 165 mm (6.5 in)
*Packing Size(L W * H):**	N/A
Weight , Net Dry:	N/A
Lead Time:	15-30 Working Days
Payment Terms:	T/T ,L/C

Coming Soon

coming soon

Engine Model	Rated Power	Aspiration	Emissions
3406C	359 kW @ 2300 RPM	Turbocharged-Aftercooled	Non-Certified. Available for Global Non-Regulated Areas
—-END—-

General Engine Specifications of CAT 3406C UL-listed Fire Pump Engine
ENGINE Configuration	Inline 6, 4-Stroke-Cycle-Diesel	Emissions	Non-Certified
Bore	137 mm (5.4 in)	Stroke	165 mm (6.5 in)
Displacement	14.6 L (893 in³)	Aspiration	Turbocharged-Aftercooled
Governor and Protection	Altronic III	Oil Change Interval	750 hours
Length	1660 mm (65.4 in)	Height	1335 mm (52.6 in)
Rotation	Counterclockwise	Flywheel Teeth	113 SAE 1
—-END—-

Engine Performance Data Rated Power of CAT 3406C UL-listed Fire Pump Engine
Maximum Power	359 kW (482 BHP)	Rated Speed	1750-2300 RPM
Minimum Power	218 kW (292 BHP)	Emissions	Non-Certified. Available for Global Non-Regulated Areas. FM Approved, UL Listed
Aspiration	Turbocharged Aftercooled (TA)
—-END—-

System of CAT CAT 3406C UL-listed Fire Pump Engine
Air Inlet System	Dry or Watercooled Manifold and Turbocharger	Charging System	Charging Alternator, 24 Volt, 35 Amp
Control System	Hydra-mechanical Governor	Exhaust System	Exhaust Manifold, Water-Cooled (Wet) or Dry
Control System	N/A	Exhaust System	Exhaust Elbow, Dry, 152 mm (6 In), 4 Bolt Flange
Fuel System	Fuel Filter, LH	Lube System	Crankcase Breather
	Fuel Transfer Pump		Oil Cooler
	Primary Fuel Filter / Water Separator		Lube Oil Filter
	Instrument Panel, LH		Oil Filler in Valve Cover and Dipstick, Both RH
	Engine Oil Pressure Gauge		Rear Sump Oil Pan
	Fuel Pressure Gauge		Oil Filler in Valve Cover
	Water Temperature Gauge		Dipstick
	Service Meter		N/A
Cooling System	Thermostats and Housing	Instrumentation System	Instrument Panel, LH
	Jacket Water Pump, Gear Driven, Centrifugal		Engine Oil Pressure Gauge
	Heat Exchanger		Fuel Pressure Gauge
	Expansion Tank		Water Temperature Gauge
	FM Required Raw Water Cooling Loops: 1.5″ Iron, Horizontal or Vertical, 1.5″ 316 Stainless Steel, Horizontal or Vertical		Service Meter
	Optional Radiator, Not UL Listed or FM Approved		N/A
—-END—-

Scopes of Supply of Caterpillar 3406C UL-listed Fire Pump Engine
Air Intake System	1. Air Intake Manifold	Exhuast System	1. Exhuast Manifold
	2. Water-Air Intercooler		2. Turbocharger
	3.Air Filter		3. Exhuast Elbow

Starting System	1. Starter Motor	Charging System	1. Charging Alternator
Starting System	2. Starter Rely	Charging System	2. N/A
Lubricating System		Fuel System
			1. Electronic Fuel Transfer Pump
	1. Oil Pump		2. Common Rail Fuel System
	2. Oil Filter		3. Fuel Filter
			4.ECU & Wiring Harness

Engine Auiliary Accessories	1.N/A	Power Output System	1. Flywheel
Engine Auiliary Accessories	2. N/A	Power Output System	2. Standard Flywheel Housing

Control System	1. ECU Socket and Sensors	Engine Mounting System	1. Engine Mouting Bracket

Cooling System	1. Water Pump
	2. Engine Fan
	3. Standard Radiator
——END——

Optional Accessories of CAT 3406C UL-listed Fire Pump Engine
Air Intake System	1. Air Intake Pre-heater	Exhuast System	1. Muffler & Bellows
	2. Air Intake Pre-Filter		2. Flame Trap
	3. Air Filter Alarm System		3. Spark Arrestor Type Muffler & Bellows
	4. Air Intake Shut-Off Valve		4. DPF System
Fuel System	1. Coarse Filter	Engine Auiliary Accessories	1. Hydraulic Oil Pump
Fuel System	2. Fuel Pre-Heater	Engine Auiliary Accessories	2. Air Compressor
Starting System	1. Manual Magnetic DC Contactor	Cooling System	1. Silent Type Radiator
	2. Dual Ears Flywheel Housing		2. Plateau Radiator
	3. Spring Starter Motor		3. Salt-Spray Resistant Radiator
	4. Air Starter Motor		4. Coolant Pre-Heater
	5. Hydraulic Starter Motor		5. Jacket Water Heater
	6. Extra Electric Starter Motor		6.N/A
	7. Remote Starting Function		7.N/A
	8. Lock Protection Function of Starter Motor		8.N/A
	9. Manual Magnetic DC Contactor		9.N/A
Power Output System	1. Clutch	Control System	1. Engine Monitor
	2. Add Gearbox for Higher Output Speed		2. NFPA20 Standard Engine Control Box
	3. N/A		3. NFPA20 Fire Fighting Pump Set Control Panel
Lubricating System	1. Oil Pre-Heater	Engine Mounting System	1. Shock Absorber Pad
——END——

As part of EMAC, PumpMac focusing on water pump set related business, from pump drive engine, to WPT PTO, from complete engine power pack to complete water pump set, from NFPA20 standard fire fighting pump accessories to fire pump drive package, from explosion proof accessories to complete explosion-proof water pump set, PumpMac provides professional one-stop solution for everything customer needed for water pump set industry.
For more information of our pump drive power pack and complete water pump set products, you are welcome to visit PumpMac homepage: www.pumpmac.com

Modifiable Components of CAT 3406C UL-listed Fire Pump Engine
Air Intake System	1. Installation Position of Air Filter	Charging System	1. 12V Charging Alternator for 12V Electric System
	2. Upgrade to Heavy-Duty Type Air Fitler		2. Explosion-Proof Charging Alternator
	3.N/A		3. Upgrading to Specified Brand and Speicifications of Charging Alternator
Exhuast System	1. Can Modify Installation Position and Direction of Turbocharger	Lubricating System	1. Oil Pan Position
	2. Water-Cooled Exhuast Manifold		2. Number of Dipstick
	3. Water-Cooled Turbocharger		3. Position of Dipstick Can Choose From 6 Positions
	4. N/A		4. Can Modify Oil Filter to Be Remote Installation
Fuel System	1. Upgrade to Fuel Fitler That Integrated with Fuel Transfer Pump and Fuel Pre-Hearter	Starting System	1. 12V starter motor for 12v electric system
	2. N/A		2. Upgrading to Specified Brand and Speicifications of Starter Motor
Cooling System	1. Can Modify Engine Fan Into Blower Fan or Suction Fan	Power Output System	1. Can Modify Size of Flywheel Housing and Flywheel
	2. Can Modify Central Position of Engine Cooling Fan		2. Dual-Ear Flywheel Housing (for Twin-Starter System)
	3. Can Choose Type of Engine Fan From Mechanical Type or Electric Type		3. Some of Models Can Modify Flywheel Housing Into Pto Integrated Type
	4. Can Modify Cooling System Into Heat Exchanger and Intercooler		4. Engine Have Connecting Port of Ptos, That Able to Provide Power Output
Engine Shut-Down System	1. 12V Solenoid for 12V Electric System	Engine Mounting System	1. Can Modify Engine Mouting Bracket
	2. Explosion-Proof Solenoid
Engine Auiliary Accessories	1.N/A	Control System	1. ECU Can Setting to Different Control Mode, Including Can Communication, Analogu Control, Isc1,Isc2,Isc3 Speed Conrol Mode ETC
