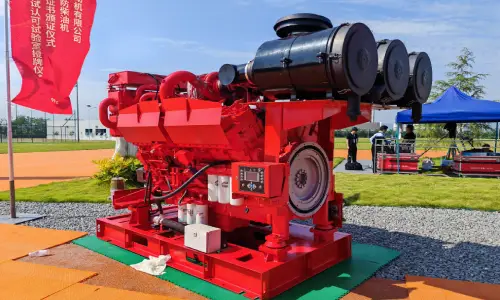

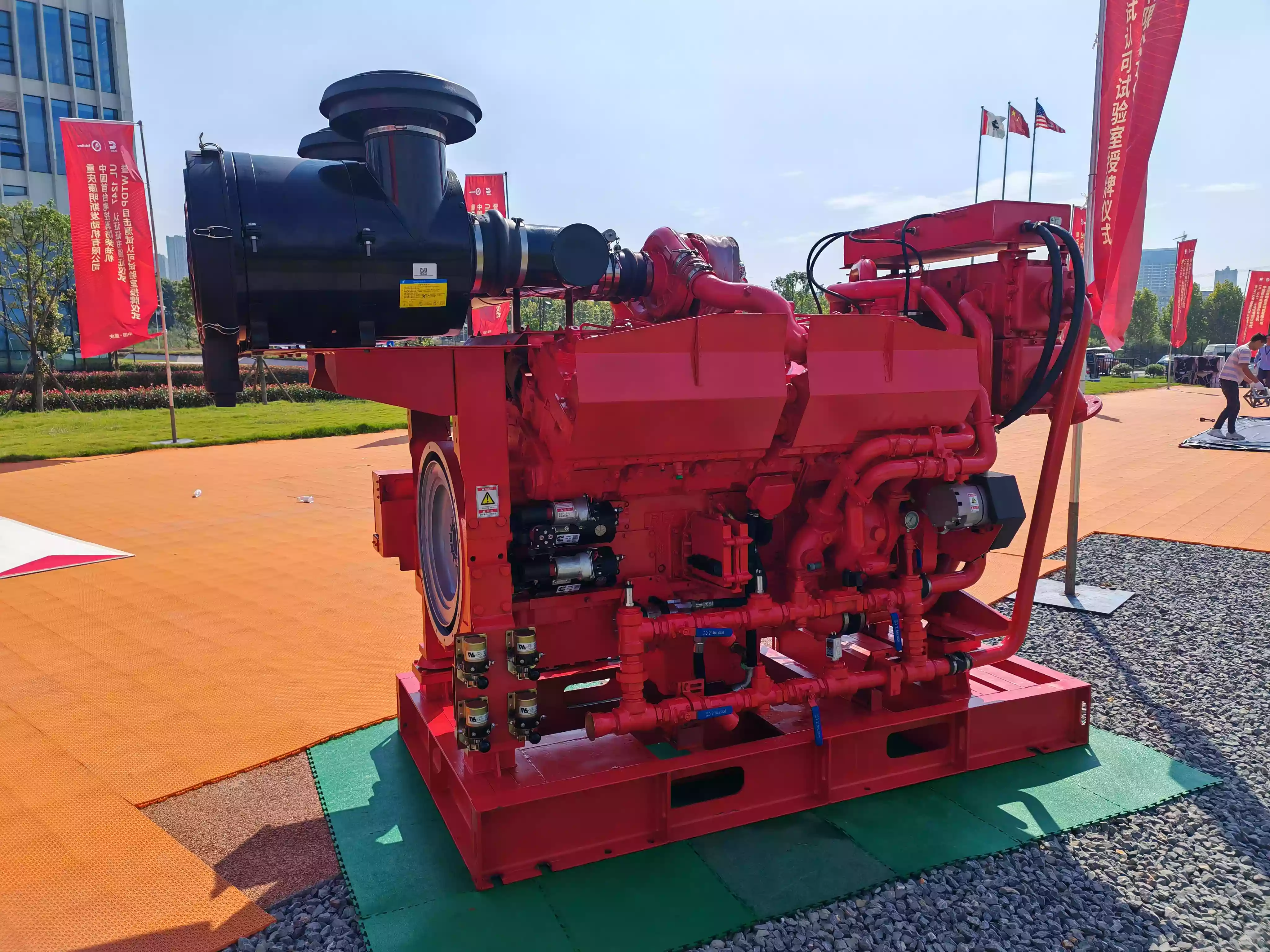

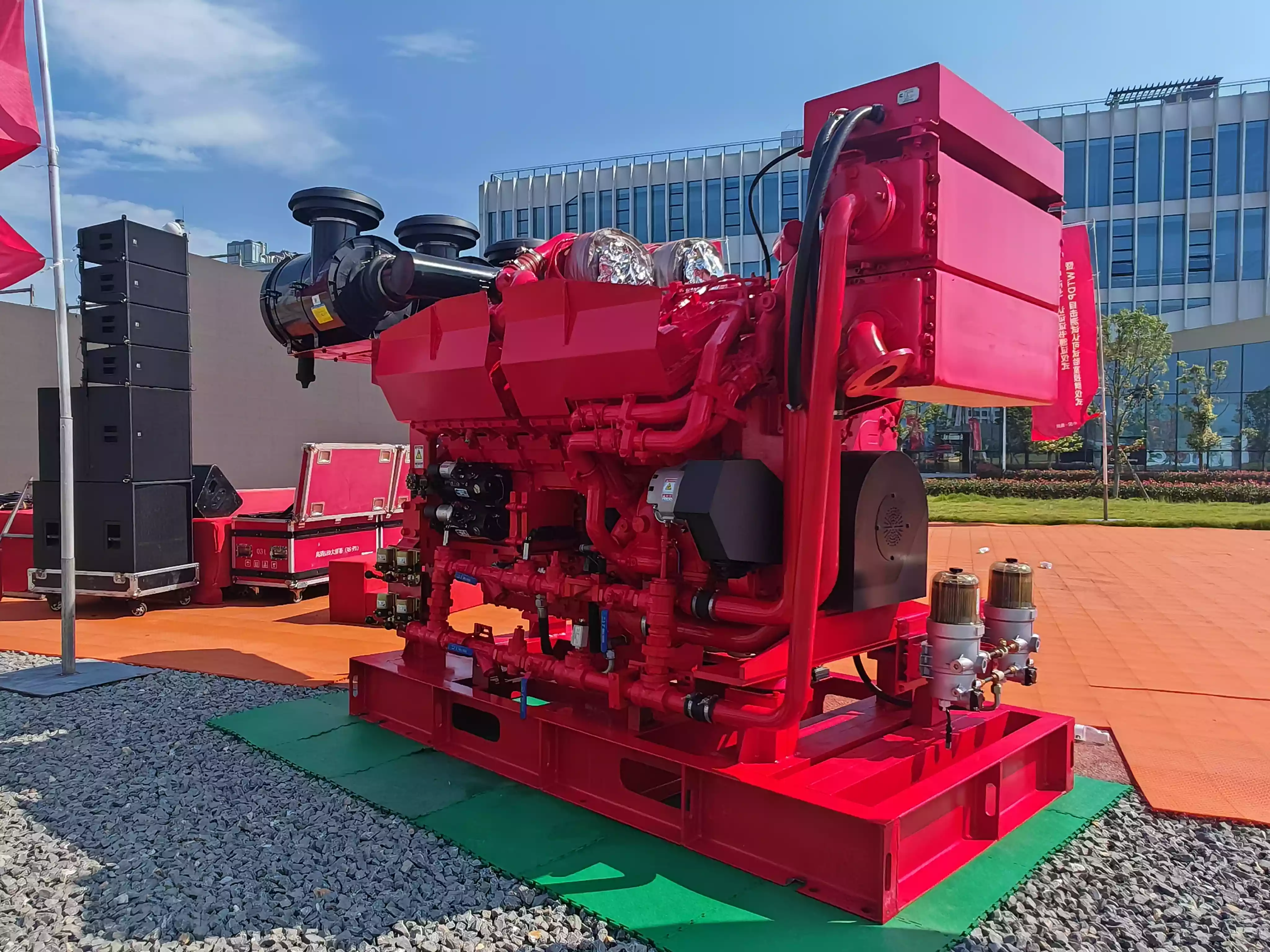

CCEC CFP-CQ38E Series UL-listed Fire Pump Engine
CCEC CFP-CQ38E Series UL-listed Fire Pump Engine is a 12-cylinder inline, 37.7 liters four-strokes engine with 159 mm (6.25 in) bore and 159 mm (6.25 in) stroke. CFP-CQ38E Series UL-listed Fire Pump Engine equipped with PT Fuel System, comes with turbocharger. The power range of CCEC CFP-CQ38E Series Fire-fighting Pump Engine is from 1145 BHP to 1364 BHP (855 kW to 1017 kW).
EMAC is a partner of CCEC for many years, we are a professional pump system solution supplier with many years of experience. We provide customers from all over the world with one-stop pump system solutions from pump system design to pump system supply, from installation to commissioning, and from after-sales. Providing sales service support for spare parts supply, EMAC is your reliable pump system partner, providing you with the best value for money and reliable system solutions.
General Specifications of CFP-CQ38E Series
| Engine Type: | In-line , 12 Cylinder |
| Displacement: | 37.7 L |
| Rated Speed: | 1500 – 1800 RPM |
| Rated Power / Speed: | 855 – 1017 kW @ 1800 RPM |
| Peak Torque: | 5467 – 5936 N.M @ 1500 – 1800 RPM |
| Fuel System: | PT-STC / CMS PT |
| Aspiration Method: | Turbocharged & Aftercooled |
| Bore * Stroke: | 159 mm * 159 mm |
| Basic Engine (L * W * H): | N /A |
| Wet Weight: | 6640 kg |
Engine Model |
Rated Power |
Peak Torque |
Engine Model |
Rated Power |
Peak Torque |
|
| CQ38E-FR259 | 855 kW (1145 BHP) @ 1800 RPM | 4985 N.m @ 1800 RPM | CQ38E-FR284 | 1017 kW (1364 BHP) @ 1800 RPM | 5936 N.m @ 1800 RPM | |
| ——END—— | ||||||
CCEC CFP-CQ38E Series UL-listed Fire Pump Engine
This list including all models of CCEC CFP-CQ38E Series UL-listed Fire Pump Engine.
Click here to find pump engines by type (Fuel System & Engine Speed).
CQ38E-FR284 Fire Pump Engine
Rated Power: 1017 kW (1364 BHP) @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 15.0 : 1
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 2
CQ38E-FR259 Fire Pump Engine
Rated Power: 855 kW (1145 BHP) @ 1800 RPM
Fuel System: CMI MCRS
Compression Ratio: 13.9 : 1
Aspiration: TC & Aftercooled
Emission Standard: U.S. EPA Tier 2
