DCEC QSB6.7 Fire Pump Engine

DCEC QSB6.7 series fire pump engine is a 6-cylinders in line, 6.7 liters four-strokes engine with 107 mm bore and 124 mm stroke. DCEC QSB6.7 series fire pump engine equipped with Electrically Control High-pressure Common Rail.

The prime power range of DCEC QSB6.7 series fire pump engine is from 118 kW to 170 kW.

As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.

DCEC QSB6.7 series electronic fire pump engine can reach upto EU Stage V emission standard, the number 30/40/50 are the emission standard mark of engine, which means engine emission standard are EU Stage III, IV, V. For different emission standard DCEC QSB6.7 series electronic fire pump engine, the engine itself are the same, the major different of different emission standard engine models are the after-treatment system and ECU program, EMAC will keep updating products introduction page of different emission standard engine models, welcome to subscribe our website to get latest update information.

If you are in need of engine model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at DCEC.

General Specifications of QSB6.7 Series

Engine Type: 6 Cylinders
Displacement: 6.7 L
Rated Speed: 1500 – 2900 RPM
Rated Power / Speed: 118 – 170 kW @ 1500 – 2900 RPM
Peak Torque: 760 N.m @ 1400 – 1900 RPM
Fuel System: HPCR
Aspiration Method: Turbocharged & Charge Air Cooled
Bore * Stroke: 107 mm * 124 mm
Basic Engine(L * W * H): 1150 mm * 810 mm * 910 mm
Dry Weight: 520 kg
DCEC QSB6.7 Fire Pump Engine Catalogue

Engine Model

Rated Power

Peak Torque

Engine Model

Rated Power

Peak Torque

QSB6.7-P160 118 kW @ 2900 RPM 760 N.m @ 1400 RPM QSB6.7-P200 147 kW @ 2900 RPM 760 N.m @ 1800 RPM
QSB6.7-P220 168 kW @ 1500 RPM N/A QSB6.7-P230 170 kW @ 2900 RPM 760 N.m @ 1900 RPM
——END——

DCEC QSB6.7 Series Fire Pump Engine

This list including all models of DCEC QSB6.7 Series Fire Pump Engine.
Click here to find fire pump engines by type (Fuel System & Engine Speed).

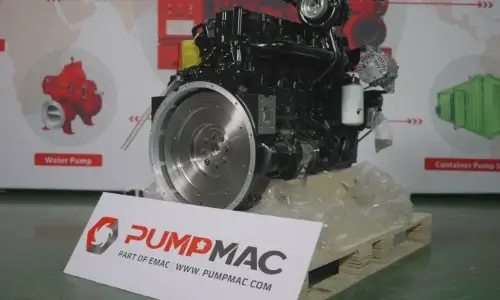

QSB6.7-P220 Pump Drive Engine

QSB6.7-P220 Pump Drive Engine

Rated Power: 168 kW @ 1500 RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

QSB6.7-P160 Fire Pump Engine

QSB6.7-P160 Fire Pump Engine

Rated Power: 118 kW @ 2900RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

QSB6.7-P200 Fire Pump Engine

QSB6.7-P200 Fire Pump Engine

Rated Power: 147 kW @ 2900RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A

QSB6.7-P230 Fire Pump Engine

QSB6.7-P230 Fire Pump Engine

Rated Power: 170 kW @ 2900RPM
Fuel Pump: HPCR
Governor: N/A
Aspiration: TC & Charge Air Cooled
Emission Standard: N/A
