Fire Engine Monitor (Requied by NFPA)

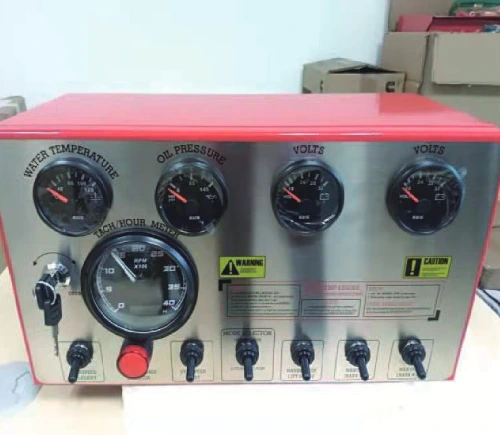

When the fire-fighting pump system need to work, the environment might have lot of smoke which make it difficult for rescue team to read anything, so NFPA20 standard have clearly requirement on the easy access of engine running information, including below items: (1) Water Temperature ; (2) Oil Pressure ; (3) Battery Volts (Two Sets) ; (4)Tacho Meter. According to NFPA20 standard, all the above information should be able to clearly read within 3 foot distance, so PumpMac developed our own A9: Fire Pump Engine Control Box, which have mechanical gauges for all above information, as well as integrated manual “CHECK 1” & “CHECK 2” starting system to control two sets of batteries.
As part of SinoMac, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
If you are in need of pump model that not available on our website for the moment, please contact SinoMac sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at UL-listed.com.

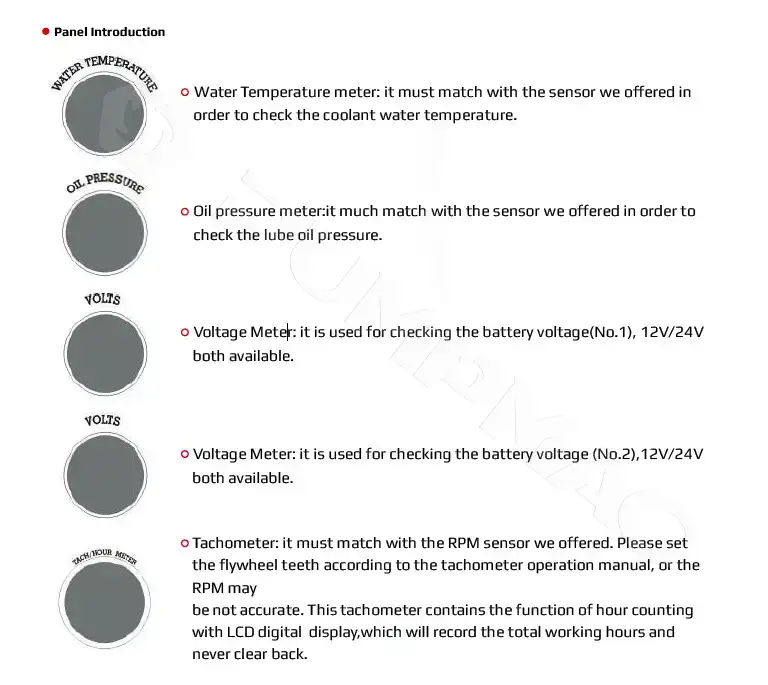

The Mechanical Gauges including:

Water Temperature

Oil Pressure

Battery Volts (Two Sets)

Tacho Meter

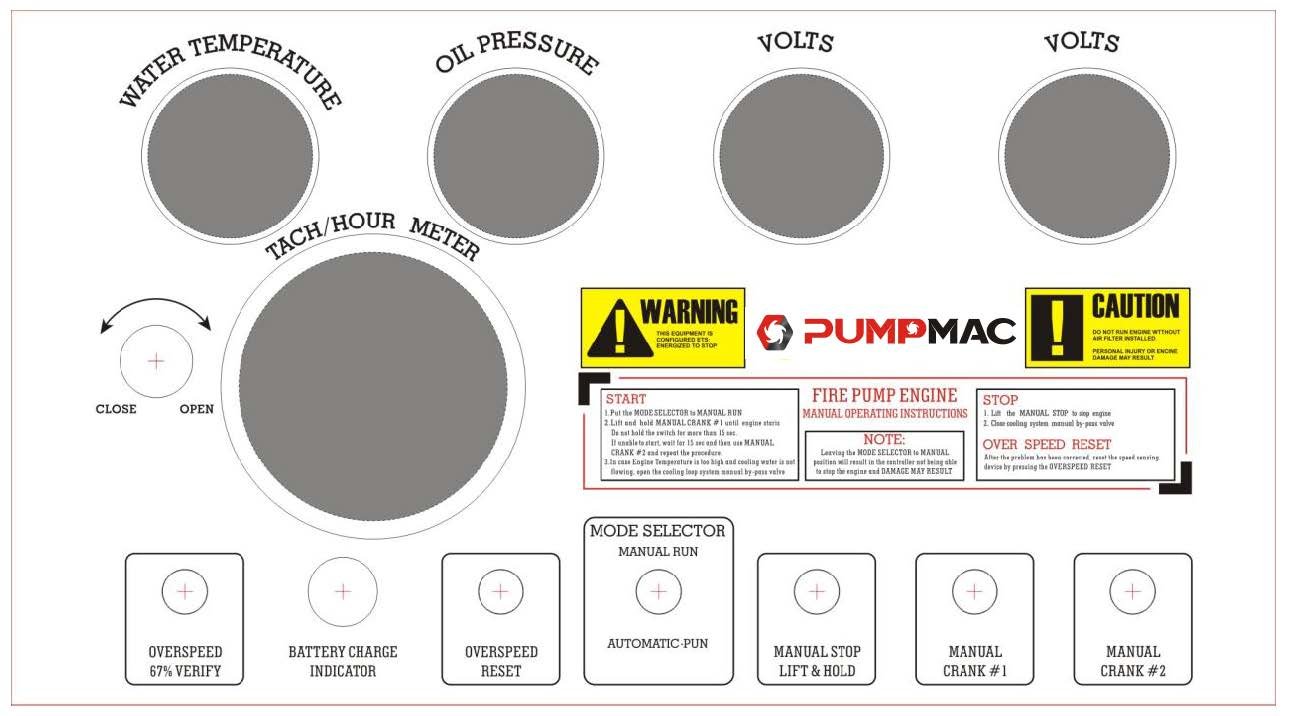

Manual of Fire Engine Monitor Series
Components Model |
Voltage |
Components Model |
Voltage |
|||
| FPEC100 | 12V and 24V | |||||
| ——END—— | ||||||
Fire Engine Monitor
This list including all Series of NFPA20 Components.
