EBARA WZ Fire Pump
EBARA WZ Fire Pump is Fire booster and pressure stabilizing water supply equipment, The motor is an air-cooled two-stage standard motor,The motor flow range is 30 – 74 m, and the flow rate is 1 – 30 L/S.
If you are in need of Pump model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at EBARA.As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EBARA WZ fire pump is a complete set of fire protection products developed by our company according to market needs. Its performance and technical conditions meet the latest GB27898.3-2011 “Fixed Fire Water Supply Equipment Part 3: Fire Pressure Boosting and Stabilizing Water Supply Equipment”. The product has passed the inspection of the Fire Products Conformity Assessment Center of the Ministry of Emergency Management and obtained the fire protection certification. We provide all customers with full life cycle services from design to power supply, from installation to commissioning, from after-sales service training to spare parts supply, from fault handling to overhaul technical support.
EBARA WZ fire pump sets are mainly used for water supply of fire hydrant systems, automatic sprinkler systems and water spray fire extinguishing systems in industry and construction. EMAC will continue to update the product introduction page of different versions of pumps. Welcome to subscribe to our website to get the latest update information.
General Specifications of WZ Fire Pump
| model: | WZ |
| flow: | 1-30 L/S |
| Lift: |
30-74 m |
| power: |
0.55-45 kW |
| Total volume – pressure: |
1500 L-1.0 MPA |
| frequency: | 50 Hz |
| Voltage: | 380 V |
| Protection level: | IP55 |
| Gross weight: | N/A |

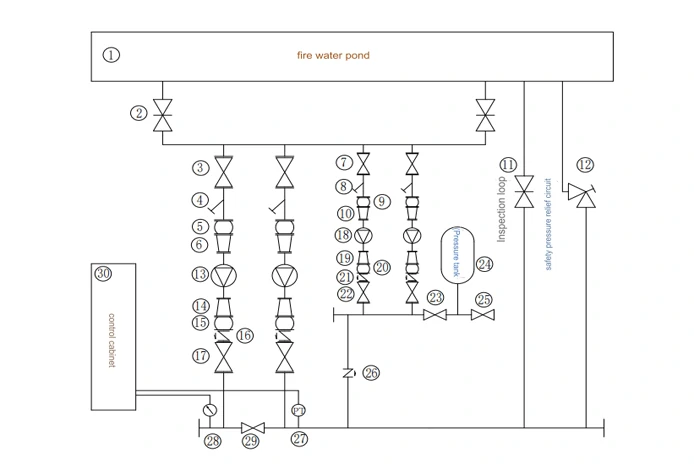

WZ Fire Pump Structure diagram

| Serial number | Part Name | Supply method |
| 1 | Fire pool | Provided by Party A |
| 2 | Service valve | Provided by Party A |
| 3 | Service valve | Provided by Party A |
| 4 | Y-type filter | Provided by Party A |
| 5 | Soft Street | Provided by Party A |
| 6 | Reduced diameter | Provided by Party A |
| 7 | Service valve | Provided by Party A |
| 8 | Y-type filter | Provided by Party A |
| 9 | Soft Street | Provided by Party A |
| 10 | Reduced diameter | Provided by Party A |
| 11 | Inspection valve | Provided by Party A |
| 12 | Safety valve | Provided by Party A |
| 13 | Booster pump | Standard |
| 14 | Reduced diameter | Standard |
| 15 | Soft connection | Standard |
| 16 | Check valve | Standard |
| 17 | Service valve | Standard |
| 18 | Pressure regulating pump | Standard |
| 19 | Reduced diameter | Standard |
| 20 | Soft connection | Standard |
| 21 | Check valve | Standard |
| 22 | Service valve | Standard |
| 23 | Service valve | Standard |
| 24 | Air pressure tank | Standard |
| 25 | Drain valve | Standard |
| 26 | Check valve | Standard |
| 27 | Pressure gauge | Standard |
| 28 | Pressure Sensors | Standard |
| 29 | Service valve | Standard |
| 30 | Electric control cabinet | Standard |
