EBARA XBD-LPD Fire Pump
EBARA XBD-LPD Fire Pump is Vertical single-stage fire pump,The motor is an air-cooled two-stage standard motor,The motor flow range is 30.6 – 130 m, and the flow rate is 10 – 200 L/S.
If you are in need of Pump model that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at EBARA.
As part of EMAC, PumpMac provides abundant premium pump-driven power pack options, WPT PTO, Advance gearbox and pump head, as well as customized water pump set. We also have a set of NFPA20 standard engine power pack accessories including air intake shut-off valve, DC contactor, engine control panel, jacket water heater etc. We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EBARA XBD-LPD fire pump is a vertical single-stage fire pump unit developed by our company according to market demand. Its performance and technical conditions meet the latest national standard GB6245-2008 “Fire Pump”. The product has passed the inspection of the Fire Product Conformity Assessment Center of the Ministry of Emergency Management and obtained the fire certification certificate. We provide full life cycle services for all customers, from design to power supply, from installation to commissioning, from after-sales service training to spare parts supply, from fault handling to overhaul technical support.
EBARA XBD-LPD Fire Pump sets are mainly used for water supply of fire hydrant systems, automatic sprinkler fire extinguishing systems and water spray fire extinguishing systems in industry and construction.EMAC will continue to update the product introduction page of different versions of pumps. Welcome to subscribe to our website to get the latest update information.
General Specifications of XBD-LPD Fire Pump Series
| model: | XBD-LPD |
| flow: | 10-200 L/S |
| Lift: |
30.6-130 m |
| power: |
5.5-160 kW |
| Rotating speed: |
1480-2900 r/min |
| frequency: | 50 Hz |
| Voltage: | 380 V |
| Protection level: | IP55 |
| Gross weight: | 98-1615 kg |

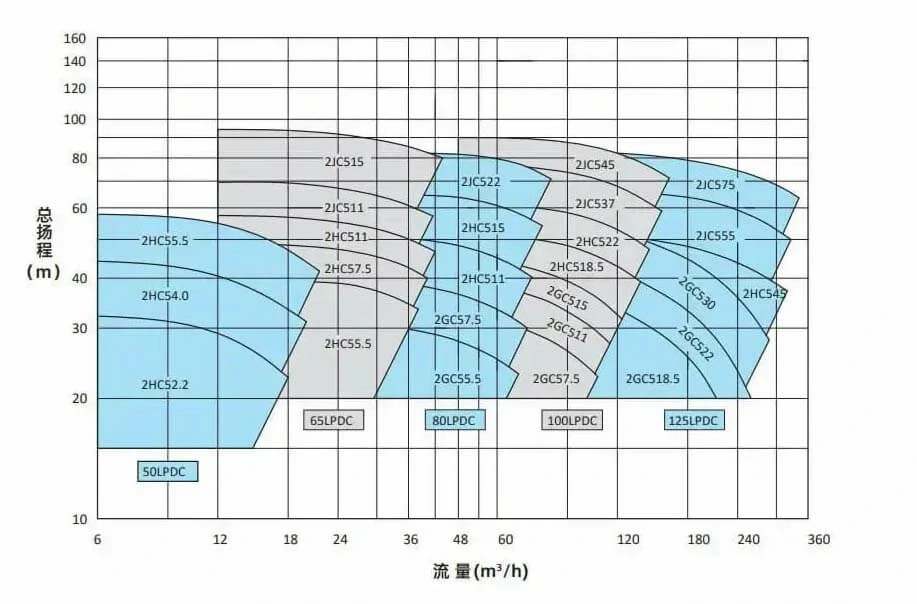

XBD-LPD Fire Pump Lift diagram

| 50LPDC | XBD-LPD 2HC52.2 | XBD-LPD 2HC54.0 | XBD-LPD 2HC55.5 | |
| 65LPDC | XBD-LPD 2HC55.5 | XBD-LPD 2HC57.5 | XBD-LPD 2HC511 | XBD-LPD 2JC511 |
| XBD-LPD 2JC515 | ||||
| 80LPDC | XBD-LPD 2GC55.5 | XBD-LPD 2GC57.5 | XBD-LPD 2HC511 | XBD-LPD 2HC515 |
| XBD-LPD 2JC522 | ||||
| 100LPDC | XBD-LPD 2GC57.5 | XBD-LPD 2GC511 | XBD-LPD 2GC515 | XBD-LPD 2HC518.5 |
| XBD-LPD 2HC522 | XBD-LPD 2JC537 | XBD-LPD 2JC545 | ||
| 125LPDC | XBD-LPD 2GC518.5 | XBD-LPD 2GC522 | XBD-LPD 2GC530 | XBD-LPD 2HC545 |
| XBD-LPD 2JC555 | XBD-LPD 2JC575 | |||

| 50LPDC | XBD-LPD 4HC5.37 | XBD-LPD 4HC5.75 | ||
| 65LPDC | XBD-LPD 4HC5.75 | XBD-LPD 4HC51.5 | XBD-LPD 4JC51.5 | XBD-LPD 4JC52.2 |
| 80LPDC | XBD-LPD 4GC5.75 | XBD-LPD 4HC51.5 | XBD-LPD 4JC54.0 | XBD-LPD 4KC55.5 |
| XBD-LPD 4KC57.5 | XBD-LPD 4KC511 | |||
| 100LPDC | XBD-LPD 4GC51.5 | XBD-LPD 4GC52.2 | XBD-LPD 4HC52.2 | XBD-LPD 4HC54.0 |
| XBD-LPD 4JC55.5 | ||||
| 125LPDC | XBD-LPD 4GC52.2 | XBD-LPD 4GC54.0 | XBD-LPD 4HC55.5 | XBD-LPD 4JC57.5 |
| XBD-LPD 4JC511 | XBD-LPD 4KC515 | XBD-LPD 4KC518.5 | XBD-LPD 4LC530 | |
| XBD-LPD 4LC537 | ||||
| 150LPDC | XBD-LPD 4HC57.5 | XBD-LPD 4HC511 | XBD-LPD 4HC515 | XBD-LPD 4JC515 |
| XBD-LPD 4JC522 | XBD-LPD 4KC530 | XBD-LPD 4KC537 | XBD-LPD 4LC545 | |
| XBD-LPD 4LC555 | XBD-LPD 4LC575 | |||
| 200LPDC | XBD-LPD 4HC55.5 | XBD-LPD 4HC57.5 | XBD-LPD 4HC511 | XBD-LPD 4JC518.5 |
| XBD-LPD 4JC522 | XBD-LPD 4JC530 | XBD-LPD 4KC537 | XBD-LPD 4KC545 | |
| XBD-LPD 4LC555 | XBD-LPD 4LC575 | XBD-LPD 4LC590 | ||
| 250LPDC | XBD-LPD 4K537 | XBD-LPD 4K545 | XBD-LPD 4K555 | XBD-LPD 4K575 |
| XBD-LPD 4L575 | XBD-LPD 4L590 | XBD-LPD 4L5110 | XBD-LPD 4L5132 | |
| XBD-LPD 4L5160 | ||||

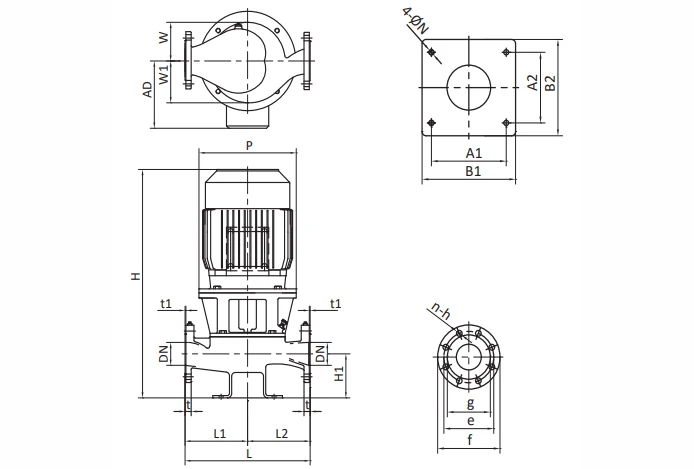

XBD-LPD Fire Pump Structure diagram
